Origins: When Radiomir Turned Sophisticated
Quick Takeaways
- The PAM00502, the Radiomir 1940 Chronograph Monopulsante 8 Days GMT Oro Rosso, is a 300-piece Special Edition from 2013, a Goldtech chronograph combining Radiomir purity with Panerai’s most technically complete hand-wound movement at the time
- The P.2004/10 calibre delivers 8 days of power reserve from three barrels in series, a column-wheel monopusher chronograph with vertical clutch, GMT function, and a linear power-reserve indicator, all visible through a deliberately skeletonised bridge structure
- The case is Goldtech, Panerai’s proprietary 18ct rose gold alloy formulated to resist oxidisation and hold its colour, not a generic off-the-shelf red gold as some casual descriptions suggest
- A single cylindrical crown conceals the chronograph pusher, performing start, stop, and reset in sequence, a minimalist mechanical gesture that keeps the case profile clean
- The PAM502 launched alongside two siblings, PAM503 in white gold and PAM506 in titanium, all sharing the same in-house engine but expressed in different materials and finishing
Jump directly to the spec sheet.
By 2013, Panerai had mastered its manufacture era. The brand’s early tool-watch identity had evolved into something more ambitious: movements designed in-house, complications that served function rather than fashion.
The Radiomir 1940 Chronograph Monopulsante 8 Days GMT Oro Rosso arrived at that peak, a Goldtech chronograph combining Radiomir purity with contemporary mechanical confidence. Introduced at the 2013 SIHH, the PAM502 appeared alongside two siblings in white gold and titanium, each built around the same in-house engine, the P.2004/10.
It was a statement piece, modern Panerai distilled into one reference: monumental case, long reserve, transparent mechanics, and a single pusher that controlled everything.
Case and Dial
The Radiomir 1940 case bridges Panerai’s evolution from the wire-lug Radiomir to the crown-guarded Luminor. Its 45mm form, here in Goldtech, Panerai’s proprietary 18ct rose gold alloy, is sculpted and balanced, polished on top with brushed flanks and integrated lugs that sit closer to the wrist than dimensions suggest.
- Material: Goldtech (proprietary 18ct rose gold alloy)
- Diameter: 45mm
- Thickness: approximately 17mm
- Weight: 181.0g
- Crystal: sapphire, 2mm thick, anti-reflective coating
- Case back: sapphire exhibition
- Water resistance: 50 metres
Panerai developed Goldtech specifically to resist the natural oxidisation and colour fade that standard rose gold alloys are prone to over years of wear, a formulation detail confirmed directly on the official Panerai archive listing for this reference. A vintage dealer’s description of the material captures the practical difference plainly:
“…a special alloy that is different from standard gold and platinum…” ValueYourWatch, on the PAM00502’s Goldtech case material. (02-09-2026 Listing no longe available)

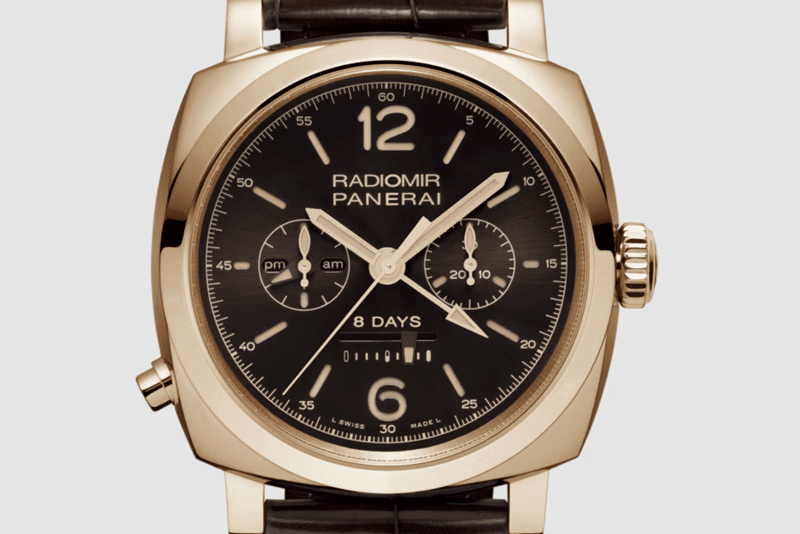

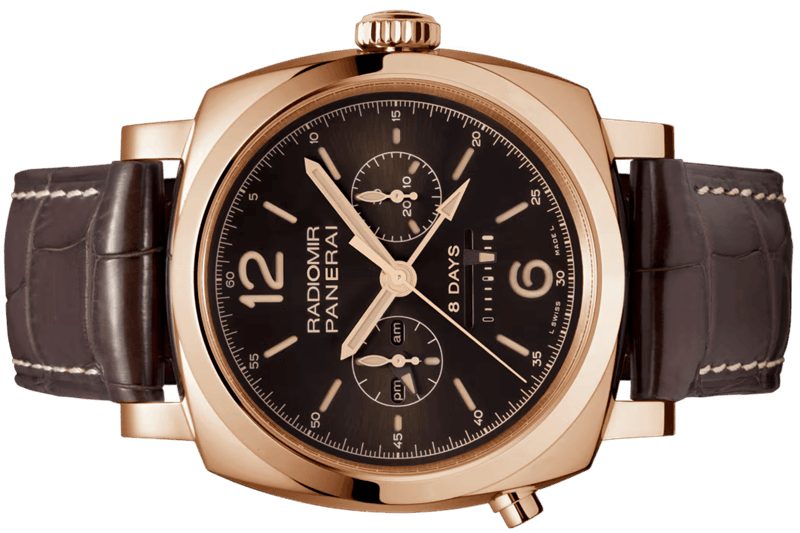

The dial, a deep brown sunburst sandwich, layers modern execution over vintage cues. Beige Super-LumiNova fills the cut-outs, and gilt hands echo the warmth of the case. At 3 o’clock sits the chronograph minute counter; at 9, small seconds and a GMT day/night indicator. A linear power-reserve indicator rests at 6, balancing the layout without clutter.
A single cylindrical-style crown conceals the chronograph pusher, performing start, stop, and reset in sequence, a minimalist gesture that keeps the case pure.
Calibre P.2004/10: The Transparent Heart
Inside beats the P.2004/10, Panerai’s first fully skeletonised chronograph calibre and one of its most technically complete hand-wound movements.
Key specifications:
- Hand-wound mechanical movement
- Diameter 13¾ lignes (~31mm); thickness 8.6mm
- 29 jewels; frequency 28,800 vph (4Hz)
- Power reserve 8 days (192 hours) via three barrels in series
- 317 components
- Column-wheel monopusher chronograph with vertical clutch
- GMT function with independent hour hand
- Linear power-reserve indicator
- Seconds-reset mechanism
Engineering and Chronograph Layout
The P.2004 architecture derives from the hand-wound P.2002, a sibling of the P.2003 calibre family, but integrates a chronograph mechanism rather than adding a module. This integration maintains thinness and ensures stable energy delivery.
The column wheel governs start, stop, and reset with a crisp click. A vertical clutch engages the central seconds hand smoothly, no jump, no lag. The three barrels distribute torque evenly across the eight-day cycle, maintaining amplitude even with the chronograph running continuously.
The chronograph’s single pusher simplifies operation, and the layout, small seconds at 9 o’clock, 30-minute counter at 3, preserves symmetry on the dial. When setting the time, the zero-reset seconds function halts and returns the hand precisely to twelve, a subtle but welcome refinement for synchronising.
Finishing: Function Made Beautiful

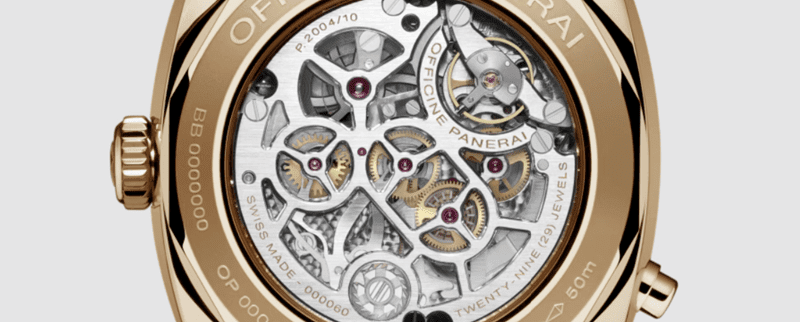

Unlike the closed-bridge versions of the calibre, the P.2004/10 is deliberately open in the PAM502. Its skeletonised bridges expose the gear train, column wheel, and barrel trio, finished in a satin brushed texture with polished bevels and heat-blued screws.
Under magnification you see the logic of Panerai’s approach: structural rather than decorative. Each bridge is thick, edges are bevelled just enough to catch light, and the overall impression is of strength, not delicacy. Geneva stripes and over-polish give way to coherence and clarity.
The skeletonised barrels reveal their mainsprings, a visual reminder of the eight days of power stored inside. Few Panerai calibres communicate their mechanics this openly.
Performance
In daily use the P.2004/10 is smooth and deliberate. Winding requires roughly 80 turns from empty, producing a steady increase in tension without harsh resistance. The column-wheel actuation feels firm and precise, and the vertical clutch prevents hand jump when the chronograph engages.
Reported accuracy commonly sits within a few seconds per day, with amplitude remaining stable for much of the eight-day cycle before declining slightly toward the end, a respectable result for such an extended reserve. Servicing intervals of six to eight years are typical, aided by the low-stress triple-barrel architecture.
Back View: The Engine Room

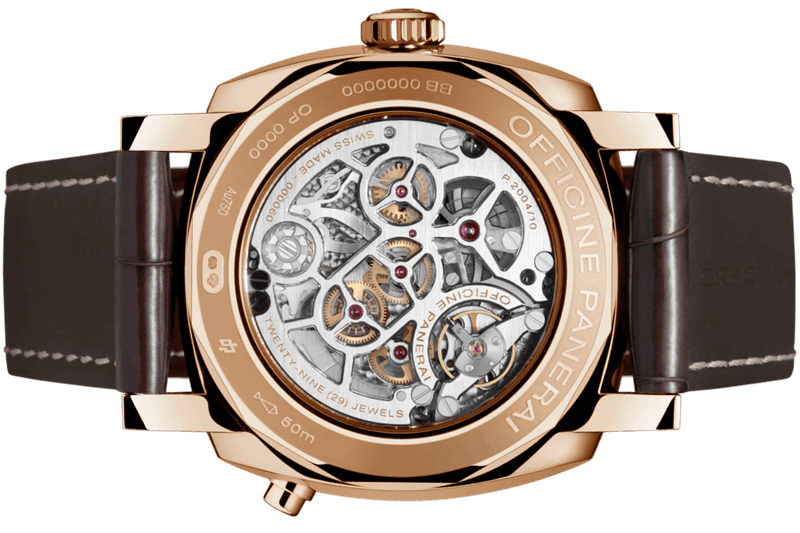

Flip the case and you’re rewarded with one of Panerai’s most compelling views. The sapphire back reveals the skeletonised bridges, the column wheel poised like a turret, and the three coiled mainsprings visible through their open barrels. The engraving “P.2004/10, Officine Panerai” sits at the lower bridge, clean and discreet.
This is where the PAM502 distinguishes itself, the interplay of gold warmth and mechanical transparency creates genuine visual interest without losing function.
Limited Edition and Availability
Officially produced as a 300-piece limited edition for 2013, confirmed by WatchBase’s reference documentation, the PAM502 Radiomir 1940 Chronograph Monopulsante in Goldtech was positioned at the top of Panerai’s SIHH presentation that year. Each watch carried an individual number and “Oro Rosso” engraving.
- Production year: 2013
- Edition: 300 pieces
- Original retail: approximately $41,000 USD, confirmed by a documented dealer trade-in record
- Secondary market range: commonly $28,000–$35,000 depending on completeness and condition
The model was accompanied by the PAM503 (Oro Bianco, white gold) and PAM506 (Titanio), all sharing the same base calibre family.
Place in the P.2004 Lineage
The P.2004 series remains one of Panerai’s most significant mechanical families.
| Reference | Case Material | Movement Variant | Notable Traits |
|---|---|---|---|
| PAM317 | Ceramic Luminor 1950 | P.2004 | Earliest 8-day monopusher chronograph |
| PAM396 | Composite Luminor 1950 | P.2004/1 | Simplified bridge layout |
| PAM502 | Goldtech Radiomir 1940 | P.2004/10 | Skeletonised, GMT, 300 pieces |
| PAM503 | White gold Radiomir 1940 | P.2004/10 | Same movement, alternate case |
| PAM506 | Titanium Radiomir 1940 | P.2004/9 | Closed bridges, lighter build |
Within this family, the P.2004/10 sits at the top both mechanically and aesthetically, representing the most open and visually expressive evolution of Panerai’s in-house chronograph platform. Collectors researching how this same movement family shows up elsewhere in Panerai’s precious-metal Radiomir catalogue should also look at the PAM00330 tourbillon, a different manufacture-movement family entirely, but a useful comparison point for how the brand approached complication and rarity in the same era.
Wrist Presence
At 45mm, this is unapologetically large, but the 1940 case’s short lugs and balanced weight distribution make it wearable. The Goldtech case adds satisfying heft, and the brown sunburst dial tempers its opulence.
Paired with a deep brown alligator strap and gold buckle, it wears less as a diver’s instrument and more as a statement of mechanical artistry. The single pusher keeps the profile clean, elegance through restraint.
For context on how the Radiomir 1940 case reads in a completely different material and register, the PAM00690 is worth comparing directly, same architectural DNA, an entirely different collector proposition.
Collector Insight
For collectors of Panerai, this model embodies the sweet spot of the brand’s modern era: an in-house calibre built for endurance, packaged in a design that acknowledges history without imitating it.
Its appeal lies in a few specific things: it is the only skeletonised hand-wound chronograph Panerai produced in this period, the P.2004/10 is an integrated movement rather than a modular retrofit, it balances eight days of reserve against genuine visual openness through the bridges, and the finite production of 300 pieces ensures real exclusivity.
While later automatic chronographs brought practicality, none matched the raw presence of this manually wound engine in Goldtech.
Who Is It For?
- The collector who wants Panerai’s most technically transparent hand-wound chronograph. The skeletonised P.2004/10 shows its mechanics openly in a way few other Panerai calibres attempt
- Someone drawn to the Radiomir 1940 case in precious metal rather than steel or titanium. Goldtech’s resistance to oxidisation makes it a more practical long-term precious-metal choice than standard rose gold
- A Paneristi who values integrated complications over modular add-ons. The GMT, chronograph, and power reserve indicator are all built into the movement architecture itself, not retrofitted onto a base calibre
- A buyer comfortable with occasional rather than daily wear. At 45mm with a 50-metre water resistance rating, this is a dress-adjacent statement piece rather than a tool watch
Not for: Collectors who want a daily-wear water-resistant Panerai, 50 metres and a precious-metal case argue for considered rather than constant wear. Anyone who prefers closed, traditionally finished bridges over an openly skeletonised movement. And not for buyers on a Radiomir budget, 300 pieces in Goldtech commands a genuine premium over the brand’s steel references.
Conclusion
The PAM502 isn’t about nostalgia or showmanship; it’s about mechanical conviction. The P.2004/10 translates Panerai’s utilitarian roots into horological language, power reserves and torque curves turned into something worth studying closely.
It’s a watch that rewards time spent examining it, not just wearing it. The skeletonised bridges reveal a mind at work; the Goldtech case reminds you that engineering and material choice can share the same space. Eight days of power, one pusher, one purpose: to show how far Panerai could go once it decided to build everything itself.
Does a fully integrated, skeletonised movement like this change how you value a complication, versus one built as a module on a simpler base? I’d like to hear where you land.
Extended Summary
- The PAM00502, the Radiomir 1940 Chronograph Monopulsante 8 Days GMT Oro Rosso, is a 300-piece Special Edition from 2013, a 45mm Goldtech chronograph built around Panerai’s first fully skeletonised hand-wound chronograph calibre, the P.2004/10
- The case material is Goldtech, Panerai’s proprietary 18ct rose gold alloy engineered to resist oxidisation, not a generic off-the-shelf red gold as some casual listings describe it; the movement itself measures 13¾ lignes, 8.6mm thick, with 317 components
- The P.2004/10 delivers 8 days of reserve via three barrels in series, a column-wheel monopusher chronograph with vertical clutch, GMT function, and linear power-reserve indicator, all visible through deliberately skeletonised bridges
- The PAM502 launched alongside two siblings: the PAM503 in white gold and the PAM506 in titanium, both sharing the same P.2004/10 movement family in different case materials and finishing
- Secondary market pricing commonly runs $28,000–$35,000 for documented examples, against an original retail of approximately $41,000; genuine scarcity at 300 pieces and the movement’s mechanical distinction keep this one of the more respected chronograph Radiomirs in circulation
At a Glance
| Specification | Detail |
|---|---|
| Model | Radiomir 1940 Chronograph Monopulsante 8 Days GMT Oro Rosso |
| Reference | PAM00502 |
| Introduced | 2013 SIHH |
| Limited to | 300 pieces |
| Case material | Goldtech (proprietary 18ct rose gold alloy) |
| Case diameter | 45mm |
| Case thickness | ~17mm |
| Weight | 181.0g |
| Water resistance | 50 metres |
| Crystal | Sapphire, 2mm, anti-reflective |
| Caseback | Sapphire, exhibition |
| Movement | Panerai P.2004/10 (in-house, hand-wound) |
| Movement diameter | 13¾ lignes (~31mm) |
| Movement thickness | 8.6mm |
| Power reserve | 8 days (192 hours), three barrels in series |
| Beat rate | 28,800 vph |
| Jewels | 29 |
| Components | 317 |
| Complications | Monopusher chronograph, GMT, linear power reserve, seconds reset |
| Dial | Brown sunburst sandwich; beige lume |
| Strap | Dark brown alligator, ecru stitching |
| Buckle | Adjustable polished Goldtech, 22mm |
| Siblings | PAM503 (white gold), PAM506 (titanium) |
| Availability | Discontinued; pre-owned only |
| Secondary market | ~$28,000–$35,000 depending on completeness and condition |
